# Hardware Setup (Main PC)

{% embed url="<https://youtu.be/wVi4NgpvDq0?t=134>" %}

{% stepper %}
{% step %}

### Power Down Your Game PC

Completely shut down your **main PC (Game PC)** before inserting the DMA card.
{% endstep %}

{% step %}

### Insert the DMA Card

Plug your DMA card into **any available PCI-e slot** on your Game PC.

<div data-with-frame="true"><figure><img src="https://3431908052-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIYId8chK5X4hf9NjSeQv%2Fuploads%2FIc9SnNetEMSvn60gdBBI%2FInstall.gif?alt=media&#x26;token=ef1f3b1a-51a1-475f-b469-48d2f87c48ec" alt=""><figcaption></figcaption></figure></div>
{% endstep %}

{% step %}

### Connect to the 2nd PC

Use the included **USB data cable** to connect the **JTAG Port** on the DMA card to your **2nd PC** (second PC).

<div align="left" data-with-frame="true"><figure><img src="https://3431908052-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIYId8chK5X4hf9NjSeQv%2Fuploads%2FTgc9N3uGzuurQ03LqaRf%2FDMA.png?alt=media&#x26;token=fa312c0a-d0e5-4389-97b1-8412c48784e6" alt=""><figcaption></figcaption></figure></div>
{% endstep %}

{% step %}

### Enter BIOS on Game PC

Power on your Game PC and **enter BIOS/UEFI setup**:

* Usually done by pressing `DEL`, `F2`, or `ESC` during boot (varies by motherboard).
  {% endstep %}

{% step %}

### Disable Virtualization (Required)

Virtualization interferes with DMA memory access and **must be disabled**.

**Intel CPUs:**

* Disable:
  * `VT-d`
  * `Intel Virtualization Technology`
  * `IOMMU` (if available)

**AMD CPUs:**

* Disable:
  * `SVM`
  * `IOMMU`
    {% endstep %}

{% step %}

### Optional (If Available)

* **Disable NX-Bit / Execute Disable Bit**\
  \&#xNAN;*(Only if listed in your BIOS. If not, skip this step.)*
* **Set PCIe Slot to Gen1**\
  \&#xNAN;*(Recommended for maximum compatibility. Found under `Advanced > PCI Settings` or similar.)*
  {% endstep %}

{% step %}

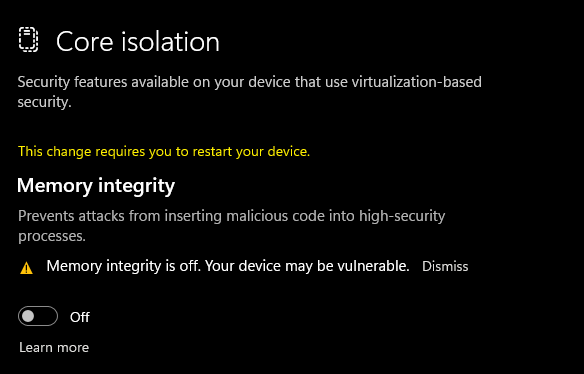

### Disable Memory Integrity

On your **Game PC**, do the following:

1. Open **Windows Security**
2. Navigate to:\
   `Device Security > Core Isolation > Core Isolation Details`
3. **Turn off "Memory Integrity"**

<div align="left" data-with-frame="true"><figure><img src="/files/tBuhK6K8gvJvWPhpEaKq" alt=""><figcaption></figcaption></figure></div>

{% hint style="info" %}
If this section won’t load, the setting may already be disabled or unsupported — no action needed.
{% endhint %}
{% endstep %}
{% endstepper %}

***

### ✅ You're Done

Your DMA card is now installed and your Game PC is properly configured.

{% hint style="info" %}
It is now recommended to proceed with the second PC setup to complete the process. Refer to the [**JTAG Driver Setup (2nd PC)**](https://docs.ducks-services.com/dma/dma-card/jtag-driver-setup-2nd-pc) for instructions.
{% endhint %}

If you run into issues, double-check that virtualization is fully disabled and all hardware connections are secure.


---
